Coil Voltage:
5V dc
Contact Configuration:
DPDT
Mounting Type:
PCB Mount
Maximum Switching Current AC:
4 A
Maximum Switching Current DC:
4 A
Maximum Switching Voltage AC:
277V
Maximum Switching Voltage DC:
220V

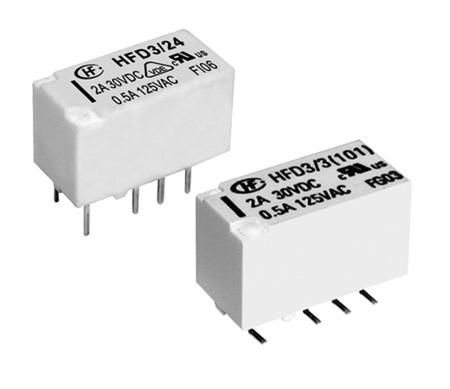

Series:
HFD3
Maximum Switching Power DC:
90 W
Latching:
Yes
Length:
15mm
Depth:
7.5mm
Height:
9mm
Dimensions:
15 x 7.5 x 9mm
Terminal Type:
PCB Pin
Number of Poles:
2
Switching Current:
2A
Relay Switching Classification:
Subminiature Signal Relay
Operating Temperature Range:
-40 → +85°C
Coil Resistance:
250Ω
Electrical Life:
1 x 10^5 cycles
Standards Met:
CQC File No:CQC1400207409, cULus File No:E133481, VDE File No:40018867
Contact Material:
Silver Alloy
Minimum Operating Temperature:
-40°C
Coil Power:
100mW
Life:
1 x 10^8 cycles
Maximum Switching Power AC:
62.5VA
Maximum Operating Temperature:
+85°C
Isolation Coil To Contact:
2.5kV ac
