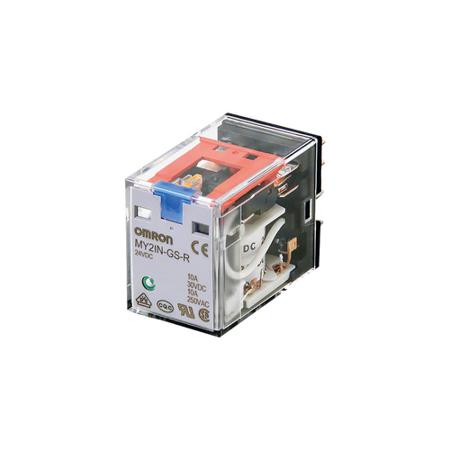

my2in-gs-r-dc100110 Omron Plug In Latching Power Relay, 100 → 110V ac Coil, 10A Switching Current, DPDT
my2in-gs-r-dc100110 Omron Plug In Latching Power Relay, 100 → 110V ac Coil, 10A Switching Current, DPDT

Omron Plug In Latching Power Relay, 100 → 110V ac Coil, 10A Switching Current, DPDT

Omron Plug In Latching Power Relay, 100 → 110V ac Coil, 10A Switching Current, DPDT

Manufacturer:
Omron
Manufacturer Part No:
MY2IN-GS-R DC100/110
Enrgtech Part No:
ET26085061
Warranty:
Manufacturer
BHD 4.50 BHD 4.50
Checking for live stock
Coil Voltage:
100 → 110V ac
Contact Configuration:
DPDT
Mounting Type:
Plug In
Switching Current:
10A
Number of Poles:
2
Latching:
Yes
Series:
MY
Terminal Type:
Plug In
Maximum Switching Voltage AC:
250V
Maximum Switching Voltage DC:
220V
Maximum Switching Current DC:
10 A
Maximum Switching Current AC:
10 A
Length:
28mm
Coil Resistance:
11.44 kΩ
Coil Power:
900mW
Contact Material:
Silver
Standards Met:
CQC, CSA, IEC, UL
Life:
500000 cycles
Minimum Operating Temperature:
-55°C
Maximum Operating Temperature:
+70°C
Isolation Coil To Contact:
2kV ac
Height:
36mm
Depth:
36mm
Maximum Switching Power DC:
10000 mW
Width:
21.5mm
Maximum Switching Power AC:
10 VA
Number of Coils:
Single
Application:
General Purpose, Industrial
Dimensions:
28 x 21.5 x 36mm
pdf icon
A700000010026731.pdf(datasheets)
pdf icon
A700000010600170.pdf(datasheets)
