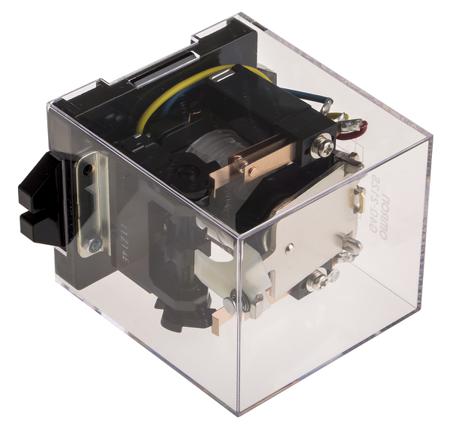

g4q-212s-24vdc Omron Plug In Latching Power Relay, 24V dc Coil, 5A Switching Current, DPDT
g4q-212s-24vdc Omron Plug In Latching Power Relay, 24V dc Coil, 5A Switching Current, DPDT
g4q-212s-24vdc Omron Plug In Latching Power Relay, 24V dc Coil, 5A Switching Current, DPDT

Omron Plug In Latching Power Relay, 24V dc Coil, 5A Switching Current, DPDT

Omron Plug In Latching Power Relay, 24V dc Coil, 5A Switching Current, DPDT

Manufacturer:
Omron
Manufacturer Part No:
G4Q-212S 24VDC
Enrgtech Part No:
ET14061145
Warranty:
Manufacturer
BHD 43.48 BHD 43.48
Checking for live stock
Coil Voltage:
24V dc
Contact Configuration:
DPDT
Mounting Type:
Plug In
Switching Current:
5A
Number of Poles:
2
Series:
G4Q
Latching:
Yes
Terminal Type:
Plug In
Maximum Switching Voltage AC:
250V ac
Maximum Switching Voltage DC:
250V dc
Maximum Switching Current AC:
5 A
Maximum Switching Current DC:
5 A
Length:
92.5mm
Coil Resistance:
155Ω
Coil Power:
3.9W
Depth:
63.5mm
Minimum Operating Temperature:
-10°C
Height:
80mm
Maximum Operating Temperature:
+55°C
Isolation Coil To Contact:
2kV
Life:
500000 (Electrical) cycles, 5000000 (Mechanical) cycles
Contact Material:
Silver Alloy
Width:
92.5mm
Maximum Switching Power AC:
1.1 kVA
Maximum Switching Power DC:
120 W
Dimensions:
92.5 x 63.5 x 80mm
Application:
Power
pdf icon
0900766b813d9501.pdf(datasheets)
