Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:

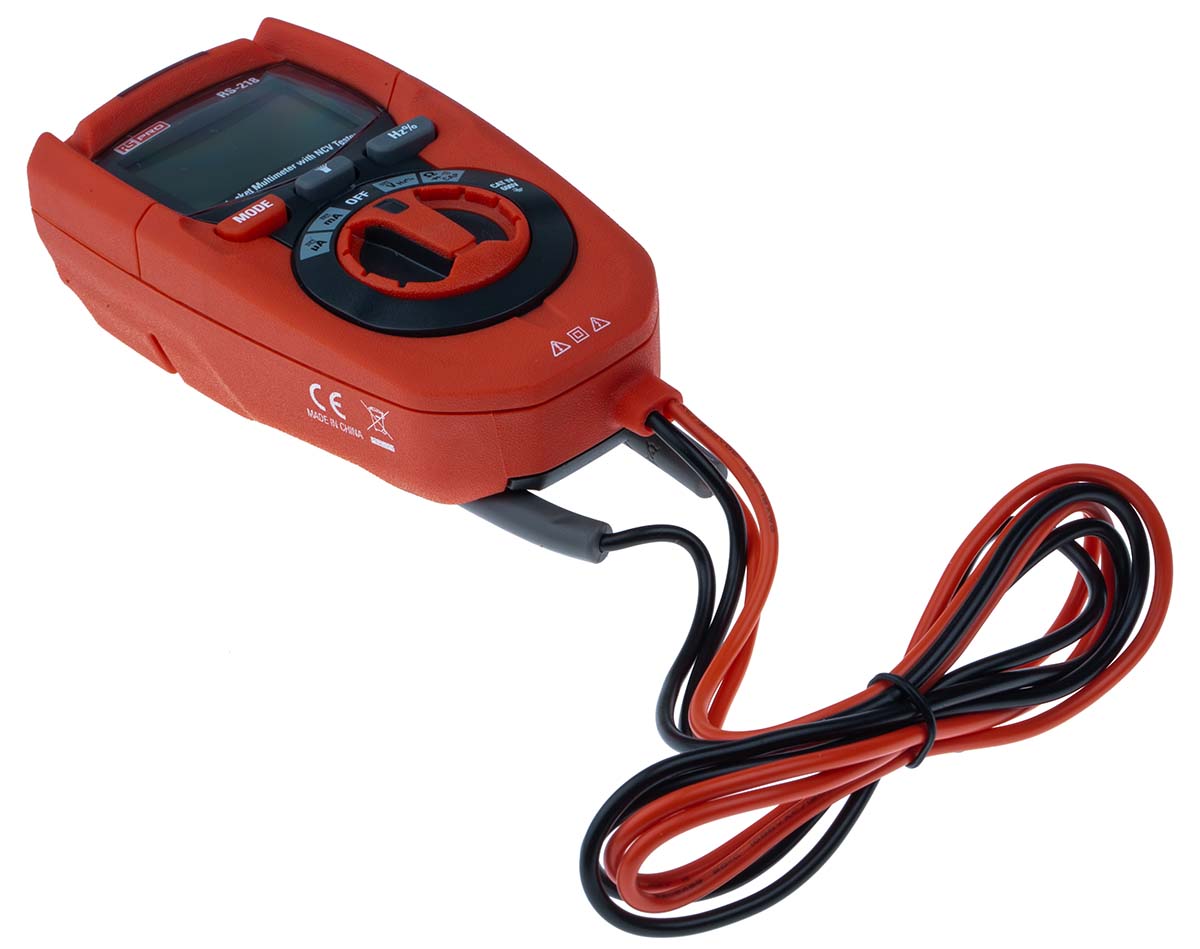

RS-218
Calibrated:
RSCAL
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
Absolute Maximum Resistance Measurement:
40MΩ
Absolute Maximum AC Current Measurement:
200mA ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Current Measurement:
200mA dc
Absolute Maximum Capacitance Measurement:
100µF
True RMS:
Yes
Maximum Frequency:
10kHz
AC Current Measurement Resolution:
0.1µA ac
DC Current Measurement Resolution:
0.1µA dc
AC Voltage Measurement Resolution:
1mV ac
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
Capacitance Measurement Resolution:
10pF
Safety Category Level:
CAT IV
Battery Type:
AAA
Minimum Operating Temperature:
0°C
Best Capacitance Measurement Accuracy:
±3 %
Best AC Voltage Accuracy:
±1 %
Maximum Operating Temperature:
+40°C
Safety Category Voltage:
600V
Weight:
2.6Ah
Height:
116mm
Best DC Current Accuracy:
±2 %
Best DC Voltage Accuracy:
±0.5 %
Dimensions:
59 x 36 x 116mm
Length:
59mm
Width:
36mm
Best AC Current Accuracy:
±2.5 %
Best Resistance Measurement Accuracy:
±0.8 %
