Multimeter Type:
Bench
Model Number p:

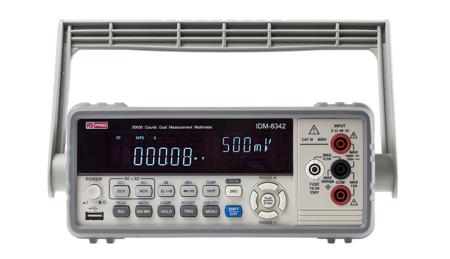

IDM8342
Display Type:
Digital
Calibrated:
UKAS
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Absolute Maximum Resistance Measurement:
50MΩ
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum Temperature Measurement:
+300°C
True RMS:
Yes
Absolute Maximum Capacitance Measurement:
50µF
Maximum Frequency:
1MHz
AC Current Measurement Resolution:
10nA ac
DC Current Measurement Resolution:
10nA dc
AC Voltage Measurement Resolution:
10µV ac
DC Voltage Measurement Resolution:
10µV dc
Resistance Measurement Resolution:
10mΩ
Temperature Measurement Resolution:
0.1°C
Capacitance Measurement Resolution:
0.001nF
Safety Category Level:
CAT II, CAT III, CAT IV
Best DC Current Accuracy:
±0.05% + 4 Digits
Best Resistance Measurement Accuracy:
±0.1% + 3 Digits
Maximum Operating Temperature:
+50°C
Safety Category Voltage:
600V
Width:
302mm
Best AC Current Accuracy:
±0.5% + 20 Digits
Length:
265mm
Best AC Voltage Accuracy:
0.35 %
Best Capacitance Measurement Accuracy:
±2% + 4 Digits
Dimensions:
265 x 302 x 107mm
Weight:
2.9kg
Height:
107mm
Minimum Operating Temperature:
0°C
Best Temperature Measurement Accuracy:
2 °C
Best DC Voltage Accuracy:
±0.02% + 4 Digits
