Multimeter Type:
Handheld
Model Number p:

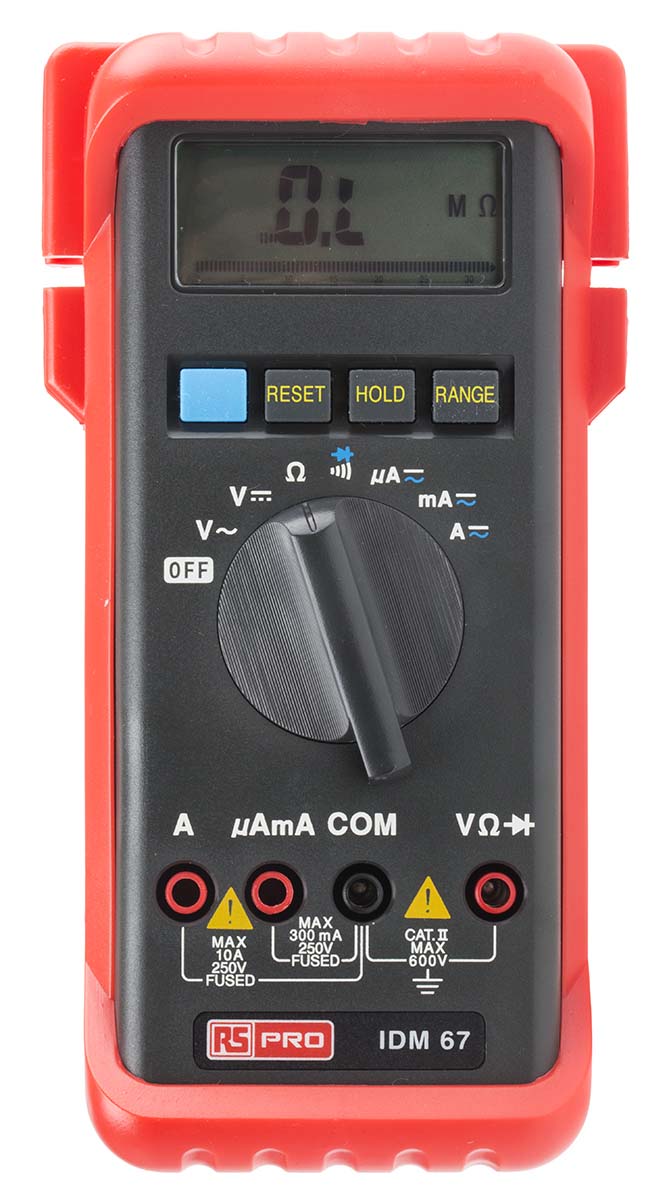

IDM67
Display Type:
Digital
Calibrated:
UKAS
Functions Measured:
AC Current, AC Voltage, Continuity, DC Current, DC Voltage, Diode, Resistance
Absolute Maximum Resistance Measurement:
30MΩ
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum AC Current Measurement:
10A ac
True RMS:
No
AC Current Measurement Resolution:
0.1µA ac
DC Current Measurement Resolution:
0.1µA dc
Resistance Measurement Resolution:
100mΩ
AC Voltage Measurement Resolution:
1mV ac
DC Voltage Measurement Resolution:
0.1mV dc
Safety Category Level:
CAT II
Maximum Operating Temperature:
+50°C
Height:
165mm
Minimum Operating Temperature:
0°C
Best AC Voltage Accuracy:
±1.7% + 5 Digits
Best DC Voltage Accuracy:
±0.7% + 2 Digits
Dimensions:
85 x 40 x 165mm
Length:
85mm
Width:
40mm
Best AC Current Accuracy:
±1.7% + 4 Digits
Best Resistance Measurement Accuracy:
±1.2% + 4 Digits
Battery Type:
AAA 1.5 V, AM4, IEC LR03
Safety Category Voltage:
600V
Best DC Current Accuracy:
±1.2% + 2 Digits
Weight:
360g
