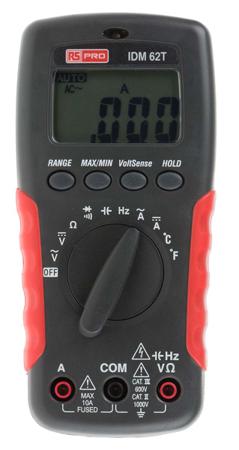

Multimeter Type:
Handheld
Model Number p:
IDM62T
Display Type:
Digital
Calibrated:
RSCAL
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum Resistance Measurement:
20MΩ
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Temperature Measurement:
+1472 °F, +800°C
True RMS:
No
Absolute Maximum Capacitance Measurement:
2mF
Maximum Frequency:
20MHz
AC Current Measurement Resolution:
1mA ac
DC Current Measurement Resolution:
1mA dc
DC Voltage Measurement Resolution:
0.1mV dc
AC Voltage Measurement Resolution:
0.1mV ac
Resistance Measurement Resolution:
100mΩ
Temperature Measurement Resolution:
0.1 °C, 1°F
Safety Category Level:
CAT II, CAT III
Capacitance Measurement Resolution:
1pF
Battery Type:
AAA 1.5 V, AM4, IEC LR03
Maximum Operating Temperature:
+50°C
Best Resistance Measurement Accuracy:
±0.7% + 2 Digits
Safety Category Voltage:
600 V, 1000V
Minimum Operating Temperature:
0°C
Weight:
250g
Best DC Voltage Accuracy:
±0.5% + 2 Digits
Dimensions:
74 x 44 x 156mm
Best DC Current Accuracy:
±1% + 3 Digits
Best AC Voltage Accuracy:
±1.5% + 5 Digits
Length:
74mm
Best AC Current Accuracy:
±1.5% + 5 Digits
Width:
44mm
Best Temperature Measurement Accuracy:
±1 %
Height:
156mm
Best Capacitance Measurement Accuracy:
±1.9% + 8 Digits
