Multimeter Type:
Handheld
Display Type:
Digital
Model Number p:

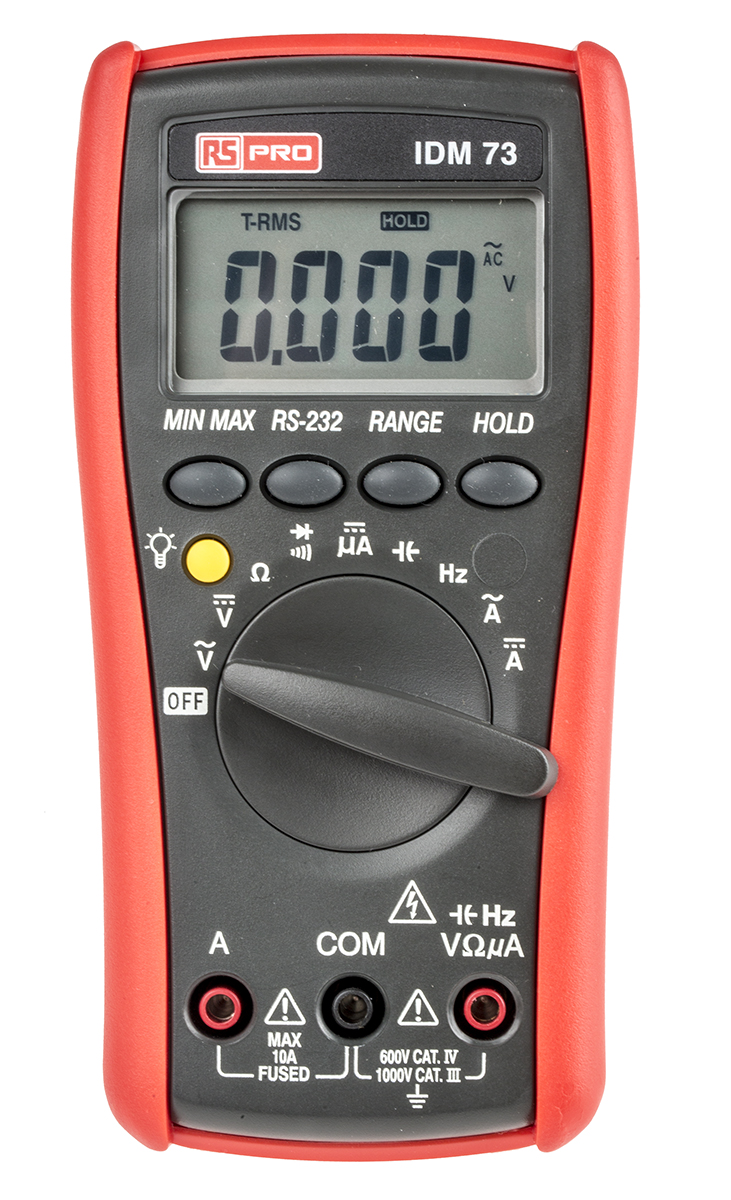

IDM73
Functions Measured:
AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Resistance
Absolute Maximum DC Voltage Measurement:
1000V dc
Absolute Maximum AC Voltage Measurement:
750V ac
Absolute Maximum AC Current Measurement:
10A ac
Absolute Maximum DC Current Measurement:
10A dc
Absolute Maximum Resistance Measurement:
60MΩ
True RMS:
Yes
Absolute Maximum Capacitance Measurement:
6mF
Maximum Frequency:
60MHz
DC Current Measurement Resolution:
0.1µA dc
AC Current Measurement Resolution:
0.1µA ac
DC Voltage Measurement Resolution:
0.1mV dc
Resistance Measurement Resolution:
100mΩ
AC Voltage Measurement Resolution:
0.1mV ac
Safety Category Level:
CAT III, CAT IV
Capacitance Measurement Resolution:
1pF
Best DC Current Accuracy:
±1% + 2 Digits
Minimum Operating Temperature:
0°C
Weight:
400g
Height:
164mm
Best AC Voltage Accuracy:
±0.9% + 5 Digits
Length:
82mm
Best AC Current Accuracy:
±1.5% + 5 Digits
Safety Category Voltage:
600 V, 1000V
Battery Type:
9V, IEC 6F22, NEDA 1604
Width:
44mm
Best Resistance Measurement Accuracy:
±0.7% + 2 Digits
Best DC Voltage Accuracy:
±0.5% + 2 Digits
Dimensions:
82 x 44 x 164mm
Best Capacitance Measurement Accuracy:
±1.9% + 8 Digits
Maximum Operating Temperature:
+50°C
