Multimeter Type:
Handheld

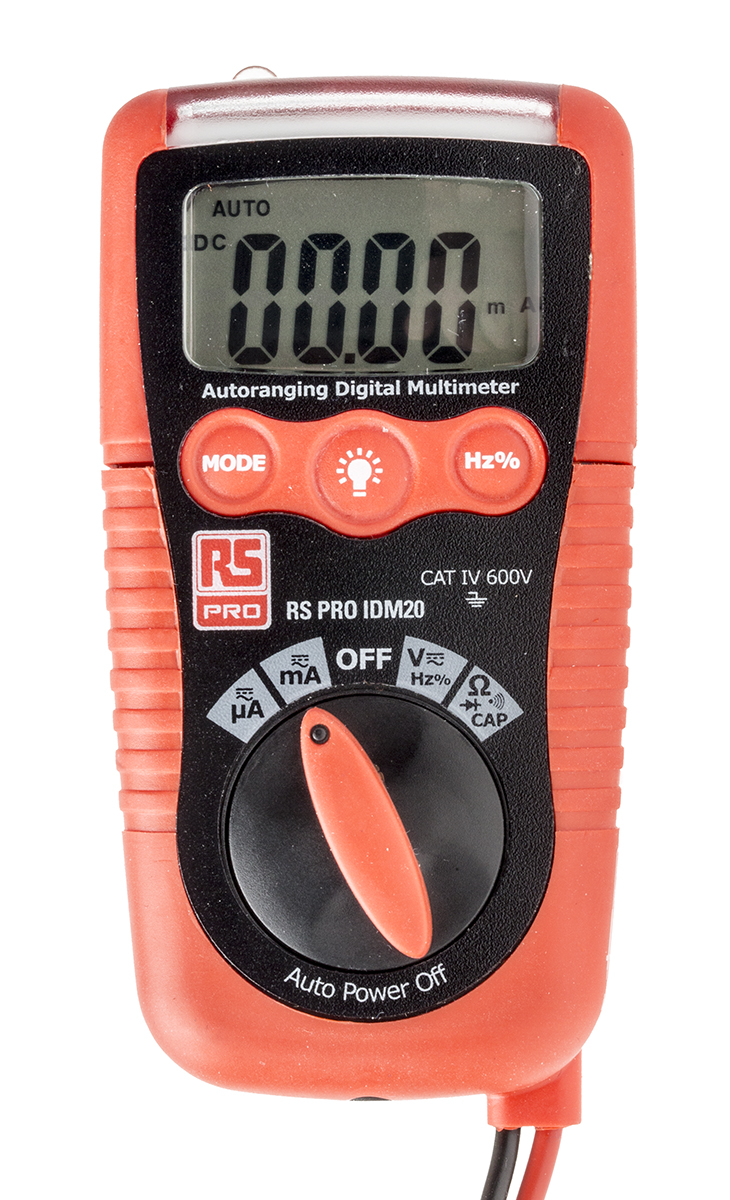

Model Number p:
IDM20
Display Type:
Digital
Functions Measured:
AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance
Absolute Maximum DC Voltage Measurement:
600V dc
Absolute Maximum Resistance Measurement:
40MΩ
Absolute Maximum AC Voltage Measurement:
600V ac
Absolute Maximum AC Current Measurement:
200mA ac
Absolute Maximum DC Current Measurement:
200mA dc
True RMS:
No
Absolute Maximum Capacitance Measurement:
100µF
Maximum Frequency:
100kHz
Safety Category Level:
CAT III
Width:
55mm
Best AC Current Accuracy:
±2.5 %
Length:
120mm
Best AC Voltage Accuracy:
±1.2 %
Height:
40mm
Weight:
2.6Ah
Best Resistance Measurement Accuracy:
±0.8 %
Best DC Current Accuracy:
±2 %
Battery Type:
AAA
Safety Category Voltage:
1000V
Best DC Voltage Accuracy:
±0.5 %
Dimensions:
120 x 55 x 40mm
Best Capacitance Measurement Accuracy:
±3 % ± 5 Digits
