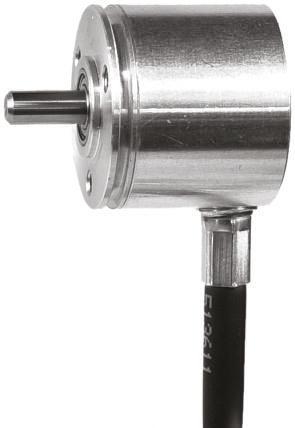

Baumer BTIV Series Optical Incremental Encoder, 1024 ppr, HTL/Push Pull Signal, Solid Type, 4mm Shaft

Baumer BTIV Series Optical Incremental Encoder, 1024 ppr, HTL/Push Pull Signal, Solid Type, 4mm Shaft

Manufacturer:

Manufacturer Part No:

BTIV 24S 16.24K 1024 G4 5

Enrgtech Part No:

ET16812529

Warranty:

Manufacturer

BHD 159.40

Checking for live stock

Encoder Technology:

Optical

Series:

BTIV

Pulses Per Revolution:

1024

Maximum Revolutions:

1200rpm

Output Signal Type:

HTL/Push Pull

Shaft Type:

Solid

Supply Voltage:

10 → 30 V dc

Shaft Diameter:

4mm

IP Rating:

IP54

Overall Width:

24mm

Minimum Operating Temperature:

-20°C

Maximum Operating Temperature:

+85°C
