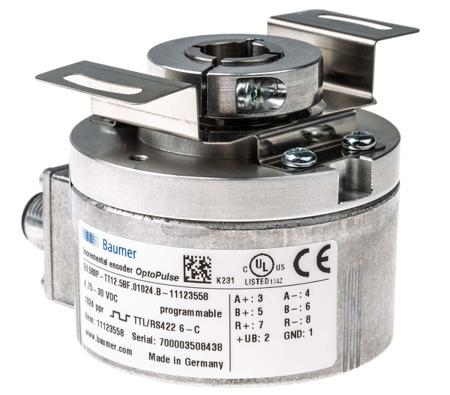

Baumer EIL580P Series Optical Incremental Encoder, 1 → 65536 ppr, TTL/HTL Signal, Hollow Type, 12mm Shaft

Baumer EIL580P Series Optical Incremental Encoder, 1 → 65536 ppr, TTL/HTL Signal, Hollow Type, 12mm Shaft

Manufacturer:

Manufacturer Part No:

EIL580P-TT12.5BF.01024.B

Enrgtech Part No:

ET14132701

Warranty:

Manufacturer

BHD 179.65

Checking for live stock

Encoder Technology:

Optical

Series:

EIL580P

Pulses Per Revolution:

1 → 65536

Maximum Revolutions:

6000rpm

Output Signal Type:

TTL/HTL

Shaft Type:

7.2 x 3.5 x 7.5mm

Shaft Diameter:

12mm

Supply Voltage:

4.75 → 30 V dc

IP Rating:

IP65

Overall Width:

58mm

Minimum Operating Temperature:

-40°C

Maximum Operating Temperature:

+100°C
