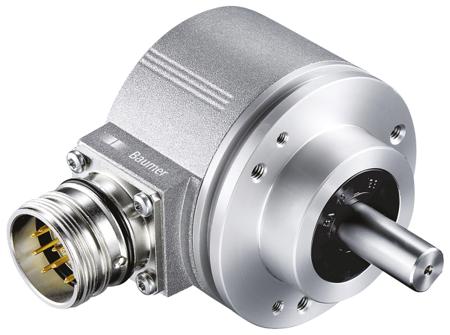

Baumer EIL580P Series Optical Incremental Encoder, 1 → 65536 ppr, TTL/HTL Signal, Solid Type, 10mm Shaft

Baumer EIL580P Series Optical Incremental Encoder, 1 → 65536 ppr, TTL/HTL Signal, Solid Type, 10mm Shaft

Manufacturer:

Manufacturer Part No:

EIL580P-SC10.5BF.01024.B

Enrgtech Part No:

ET13924639

Warranty:

Manufacturer

BHD 156.16

Checking for live stock

Encoder Technology:

Optical

Pulses Per Revolution:

1 → 65536

Series:

EIL580P

Maximum Revolutions:

12000rpm

Output Signal Type:

TTL/HTL

Shaft Type:

Solid

Shaft Diameter:

10mm

Supply Voltage:

4.75 → 30 V dc

IP Rating:

IP65

Overall Width:

58mm

Minimum Operating Temperature:

-40°C

Mounting Type:

Clamping Flange

0900766b812f7c26.pdf(datasheets)
