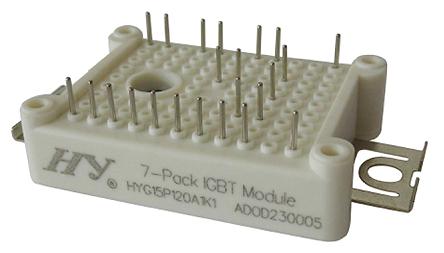

HY Electronic Corp HYG15P120A1K1 3 Phase Bridge IGBT Module, 20 A 1200 V, 22-Pin, Through Hole

HY Electronic Corp HYG15P120A1K1 3 Phase Bridge IGBT Module, 20 A 1200 V, 22-Pin, Through Hole

Manufacturer:

Manufacturer Part No:

HYG15P120A1K1

Enrgtech Part No:

ET13842155

Warranty:

Manufacturer

BHD 11.74

Checking for live stock

Maximum Continuous Collector Current:

20 A

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

156 W

Configuration:

3 Phase Bridge

Mounting Type:

Through Hole

Channel Type:

Pin Count:

Transistor Configuration:

3 Phase

Dimensions:

62.8 x 34 x 12mm

Maximum Operating Temperature:

+125 °C

Minimum Operating Temperature:

-40 °C

0900766b814b5d43.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
