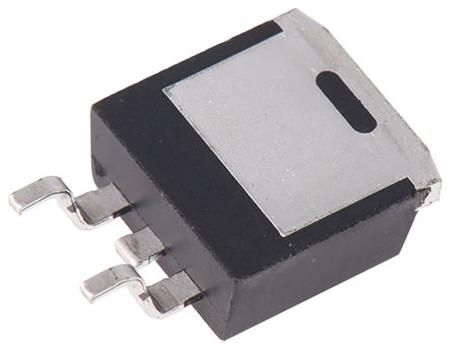

STMicroelectronics STGB10NB37LZT4 IGBT, 20 A 375 V, 3-Pin D2PAK (TO-263), Surface Mount

STMicroelectronics STGB10NB37LZT4 IGBT, 20 A 375 V, 3-Pin D2PAK (TO-263), Surface Mount

Manufacturer:

Manufacturer Part No:

STGB10NB37LZT4

Enrgtech Part No:

ET100213286

Warranty:

Manufacturer

BHD 2.03

Checking for live stock

Maximum Continuous Collector Current:

20 A

Maximum Collector Emitter Voltage:

375 V

Maximum Gate Emitter Voltage:

12V

Package Type:

D2PAK (TO-263)

Mounting Type:

Surface Mount

Channel Type:

Pin Count:

Transistor Configuration:

Single

Dimensions:

10.4 x 9.35 x 4.6mm

Maximum Operating Temperature:

+175 °C

Minimum Operating Temperature:

-65 °C

0900766b80db0f0f.pdf(datasheets)

0900766b81644fb0.pdf(datasheets)
