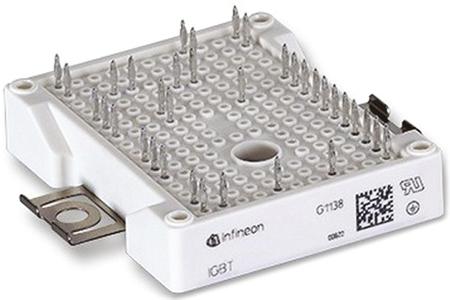

Infineon FP35R12W2T4B11BOMA1 3 Phase Bridge IGBT Module, 54 A 1200 V, 35-Pin EASY2B, PCB Mount

Infineon FP35R12W2T4B11BOMA1 3 Phase Bridge IGBT Module, 54 A 1200 V, 35-Pin EASY2B, PCB Mount

Manufacturer:

Manufacturer Part No:

FP35R12W2T4B11BOMA1

Enrgtech Part No:

ET100163261

Warranty:

Manufacturer

BHD 21.17

Checking for live stock

Maximum Continuous Collector Current:

54 A

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

215 W

Package Type:

EASY2B

Configuration:

3 Phase Bridge

Mounting Type:

PCB Mount

Channel Type:

Pin Count:

Switching Speed:

1MHz

Transistor Configuration:

3 Phase

Dimensions:

56.7 x 48 x 12mm

0900766b8135d962.pdf(datasheets)

0900766b813d03d2.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
