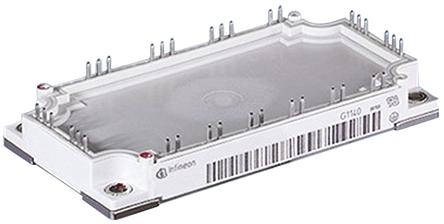

Infineon FP40R12KE3GBOSA1 3 Phase Bridge IGBT Module, 55 A 1200 V, 35-Pin ECONO3, PCB Mount

Infineon FP40R12KE3GBOSA1 3 Phase Bridge IGBT Module, 55 A 1200 V, 35-Pin ECONO3, PCB Mount

Manufacturer:

Manufacturer Part No:

FP40R12KE3GBOSA1

Enrgtech Part No:

ET100162972

Warranty:

Manufacturer

BHD 27.09

Checking for live stock

Maximum Continuous Collector Current:

1005 (0402)

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

210 W

Package Type:

ECONO3

Configuration:

3 Phase Bridge

Mounting Type:

PCB Mount

Channel Type:

Pin Count:

Switching Speed:

1MHz

Transistor Configuration:

3 Phase

Dimensions:

122 x 62 x 17mm

0900766b8135d963.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
