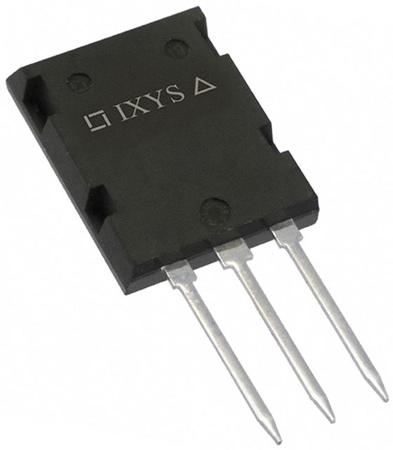

IXYS IXYX100N120B3 IGBT, 225 A 1200 V, 3-Pin PLUS247, Through Hole

Manufacturer:

Manufacturer Part No:

IXYX100N120B3

Enrgtech Part No:

ET100141758

Warranty:

Manufacturer

BHD 10.94

Checking for live stock

Maximum Continuous Collector Current:

225 A

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

1150 W

Package Type:

PLUS247

Mounting Type:

Through Hole

Channel Type:

Pin Count:

Switching Speed:

30kHz

Transistor Configuration:

Single

Dimensions:

16.13 x 5.21 x 21.34mm

Maximum Operating Temperature:

+175 °C

0900766b812e6328.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
