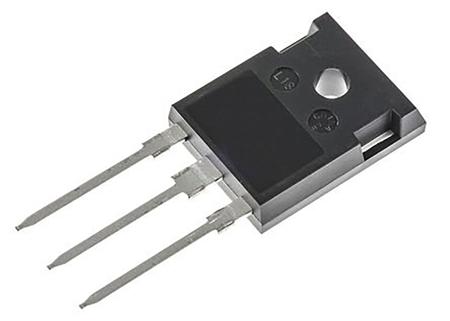

IXYS IXYH40N120C3 IGBT, 70 A 1200 V, 3-Pin TO-247, Through Hole

Manufacturer:

Manufacturer Part No:

IXYH40N120C3

Enrgtech Part No:

ET100141694

Warranty:

Manufacturer

BHD 5.22

Checking for live stock

Maximum Continuous Collector Current:

2.4 x 1 x 1.8mm

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

577 W

Package Type:

TO-247

Mounting Type:

Through Hole

Channel Type:

Pin Count:

Switching Speed:

Keyboard Switch

Transistor Configuration:

Single

Dimensions:

16.26 x 5.3 x 21.46mm

Maximum Operating Temperature:

+175 °C
